Good Result On The 80m Half Wave End Fed Inverted V Antenna

-


 This morning before work I was listening out for DX on 3.795Mhz at around 7:30 utc and heard two nice signals from North America. I managed to work both stations - W2VP and W9LF. The signal exchange from W2VP was (My sig) 55 out and John was coming in to my station with 56 signal.

W9LF was slightly further away and I was 5/6 at his end and Carl W9LF was 5/7. A great start to the day as headed off to work.

This evening was even better as I made more 80m DX with Russ VE9FI with a signal exchange of 5/5 both ways. After that I was on a roll and worked a Net with K2RR Rich who gave me a 5/7 report, Rich was loud and coming in very well with a 5/8 signal. Next up was VE1CHW Rob, Rob was also strong with a 5/8 signal I received a 5/7 signal report back. I also worked Vlad UG5A 5/9 both ways and finished off with W2FFE Dave, again another good copy and a 5/7 exchange both ways.

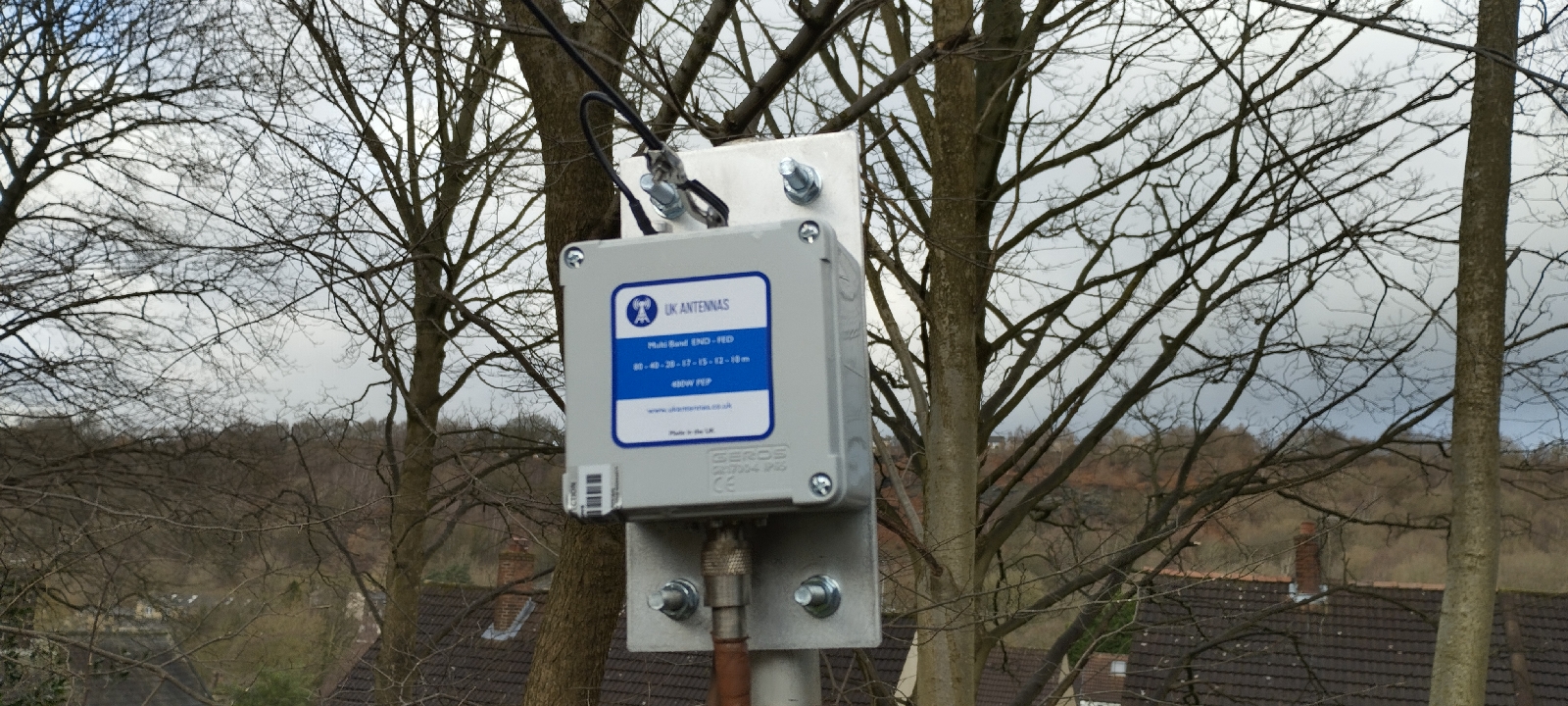

The new EFHW Inverted V is certainly surprising me and seems better than the centre fed dipole which I did not expect. I seem to have got lucky, my QTH and surroundings seem well suited to the configuration of the EFHW Inverted V. A nice bit of DX on 80 meters and conditions are good but I have experienced better so its positive vibes this side. Good DX thanks for following.
